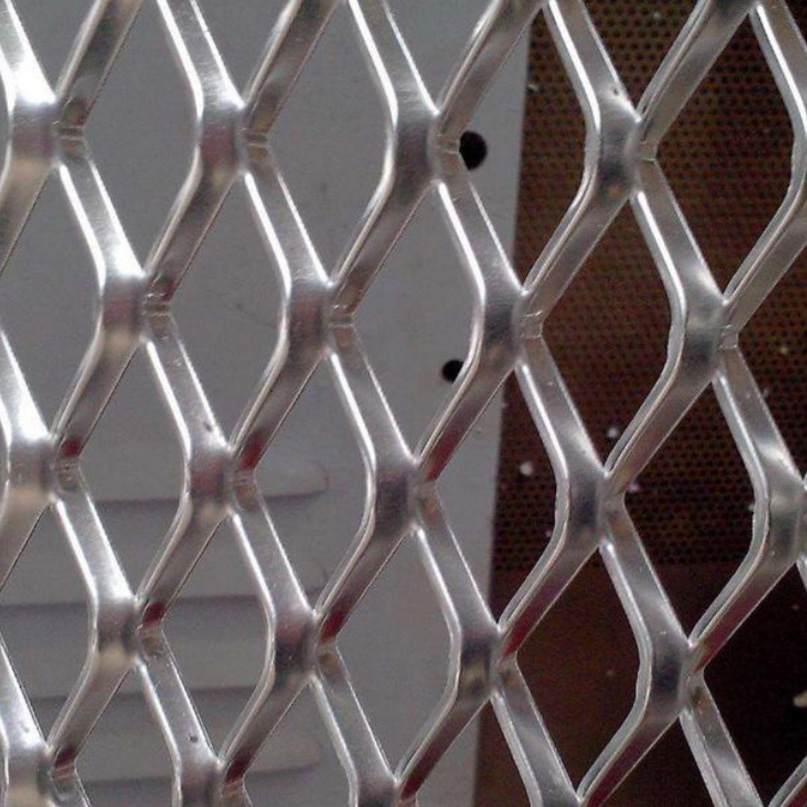

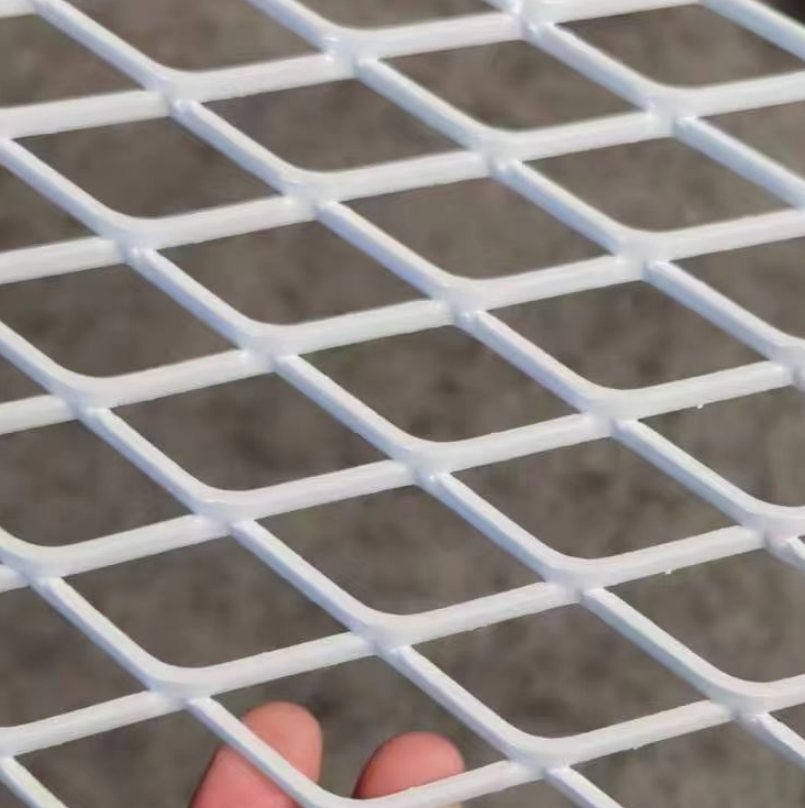

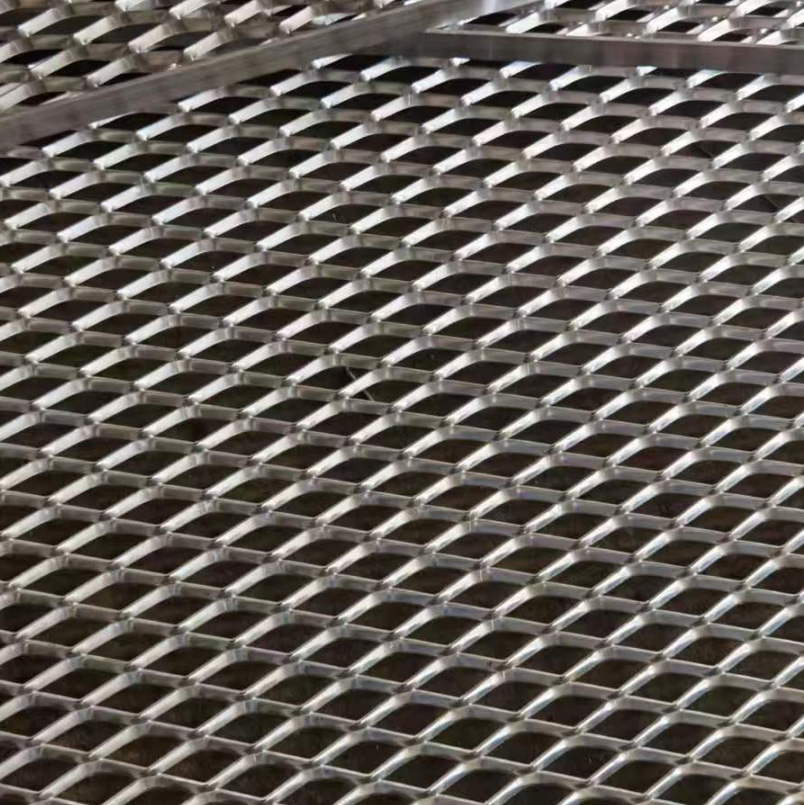

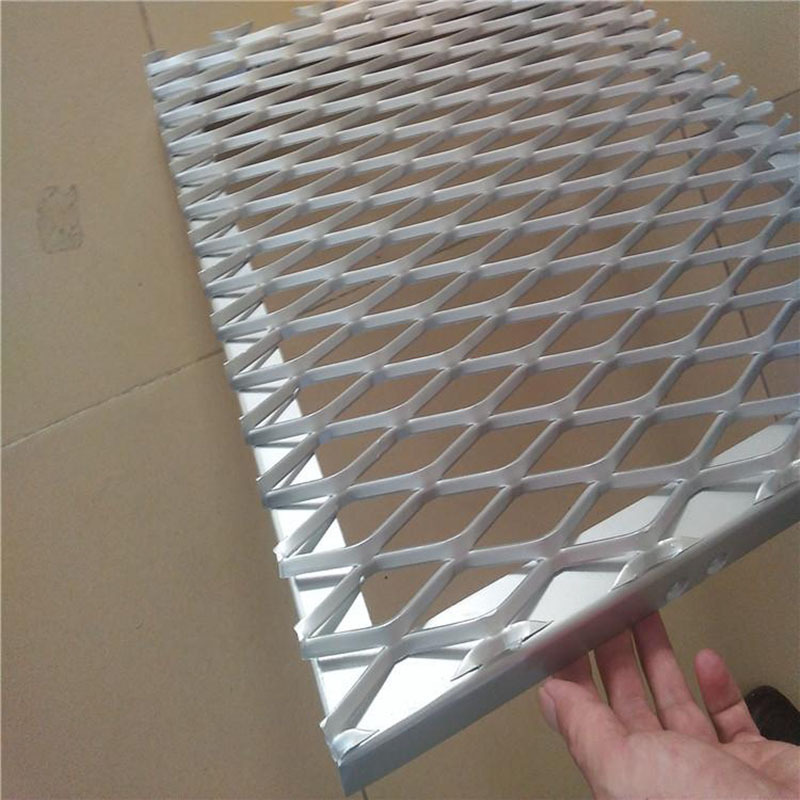

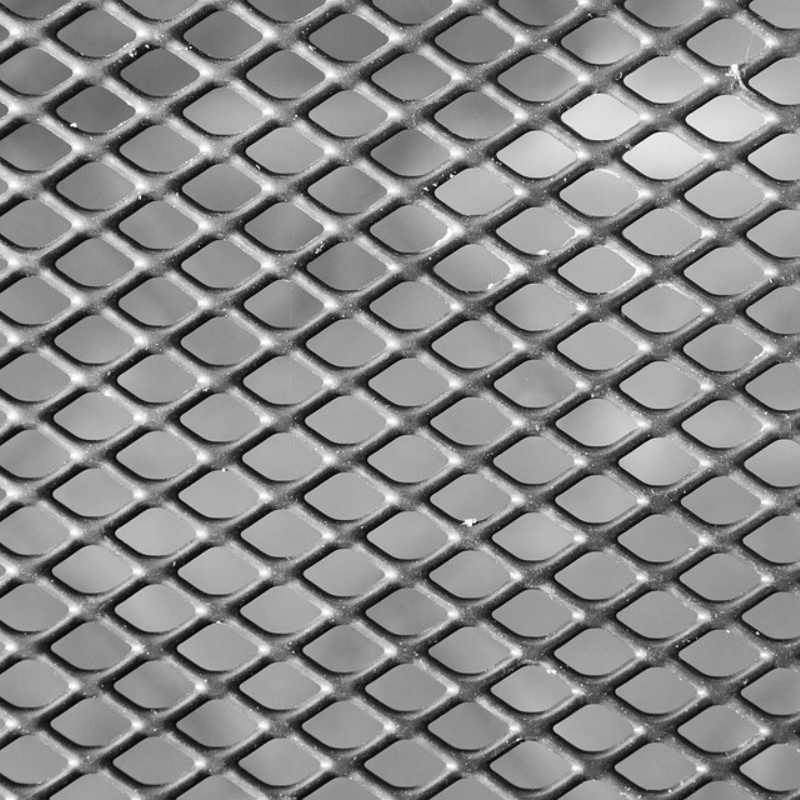

Raised expanded metal is made by shearing and stretching the metal sheet with a set of die on a press, creating diamond shaped openings. The solid intersections of two strands are called bonds that lie on top of each other to form a raised effect. This adds additional strength and rigidity to the expanded metal, also provides directional skid-resistance surface. No material is lost in the manufacturing process, not like the perforated metal production, so it is a green engineered alternative in many projects.

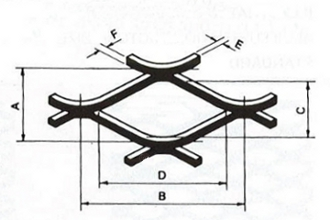

EXPANDED MESH TERMINOLOGY AND TYPES
|
A. WIDTH OF MESH (S.W.D.)
B. LENGTH OF MESH (L.W.D.)
C. WIDTH OF OPENING
D. LENGTH OF OPENING
E. STRAND THICKNESS
F. STRAND WIDTH
|
|
Specification
Material: low carbon steel, stainless steel, copper, aluminum, nickel alloy, other alloys.
Surface treatment: hot-dip galvanizing, electric galvanizing, anti-rust paint, etc.
|
Specification - raised expanded metal
|
|
Style
|
Design sizes
|
Opening sizes
|
Strand
|
Open area (%)
|
|
A-SWD
|
B-LWD
|
C-SWO
|
D-LWO
|
E-Thickness
|
F-Width
|
|
REM-3/4"#9
|
0.923
|
2
|
0.675
|
1.562
|
0.134
|
0.15
|
67
|
|
REM-3/4"#10
|
0.923
|
2
|
0.718
|
1.625
|
0.092
|
0.144
|
69
|
|
REM-3/4"#13
|
0.923
|
2
|
0.76
|
1.688
|
0.09
|
0.096
|
79
|
|
REM-3/4"#16
|
0.923
|
2
|
0.783
|
1.75
|
0.06
|
0.101
|
78
|
|
REM-1/2"#13
|
0.5
|
1.2
|
0.337
|
0.938
|
0.09
|
0.096
|
62
|
|
REM-1/2"#16
|
0.5
|
1.2
|
0.372
|
0.938
|
0.06
|
0.087
|
65
|
|
REM-1/2"#18
|
0.5
|
1.2
|
0.382
|
0.938
|
0.048
|
0.088
|
65
|
|
REM-1/2"#20
|
0.5
|
1
|
0.407
|
0.718
|
0.036
|
0.072
|
71
|
|
REM-1/4"#18
|
0.25
|
1
|
0.146
|
0.718
|
0.048
|
0.072
|
42
|
|
REM-1/4"#20
|
0.25
|
1
|
0.157
|
0.718
|
0.036
|
0.072
|
42
|
|
REM-1"#16
|
1
|
2.4
|
0.872
|
2.062
|
0.06
|
0.087
|
83
|
|
REM-2"#9
|
1.85
|
4
|
1.603
|
3.375
|
0.134
|
0.149
|
84
|
|
REM-2"#10
|
1.85
|
4
|
1.63
|
3.439
|
0.09
|
0.164
|
82
|
|
Note:
|
|
1. All dimensions in inch.
|
|
2. Measurement is taken carbon steel as an example.
|
|
