Twill weave wire cloth

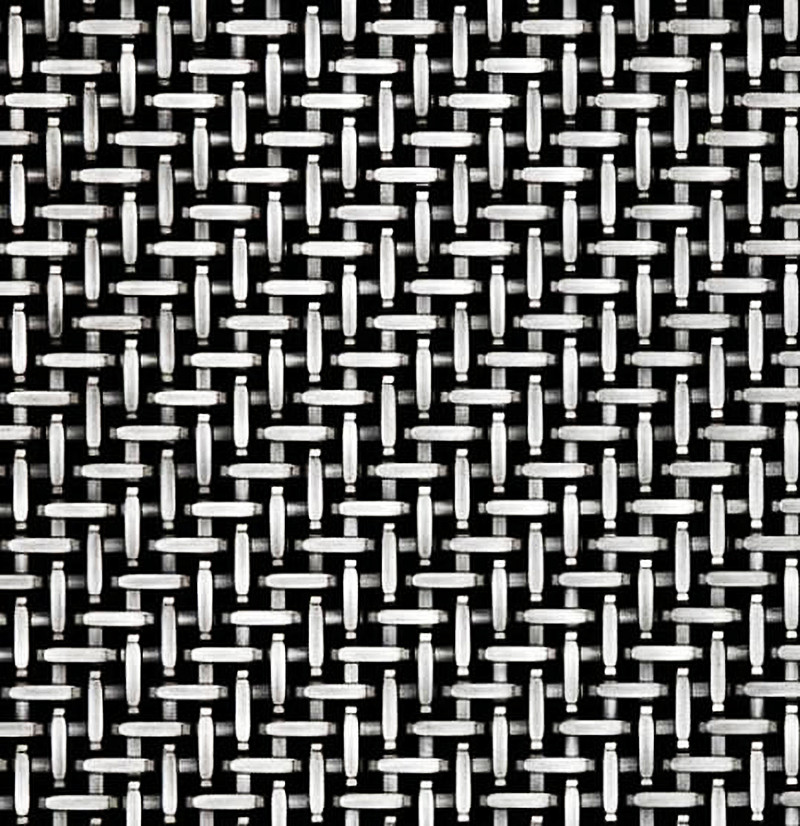

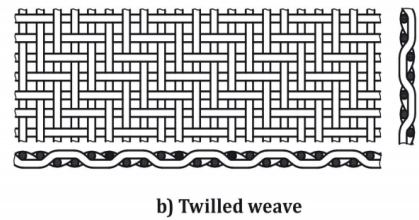

Twill weave wire cloth can be produced in a wide number of variations. With the standard version,two warp wires are woven over and then under a pair of weft wires in such a way that there is an offset of one thread between the rows. This weave is mainly chosen when the wire is so thick in relation to the aperture that it would not stand up to the distortion of the weaving process on its own. Use of the latest weaving technology ensures a stable weave.The diamond shaped openings of the mesh produce the typical diagonal pattern weave.




Products name£º

Twill weave wire cloth

Material standard:

ASTM A580;DIN 17440

Weaving type£º

Twill weave

Quality standard

ASTME2016-20;ISO 9044

Opening size£º

0.02~10mm

Open area£º

13.5%~70%

Width£º

50~2000mm

Length:

Normal is 30.5m(100 feet)

Note£º

 Other sizes can be customized.
