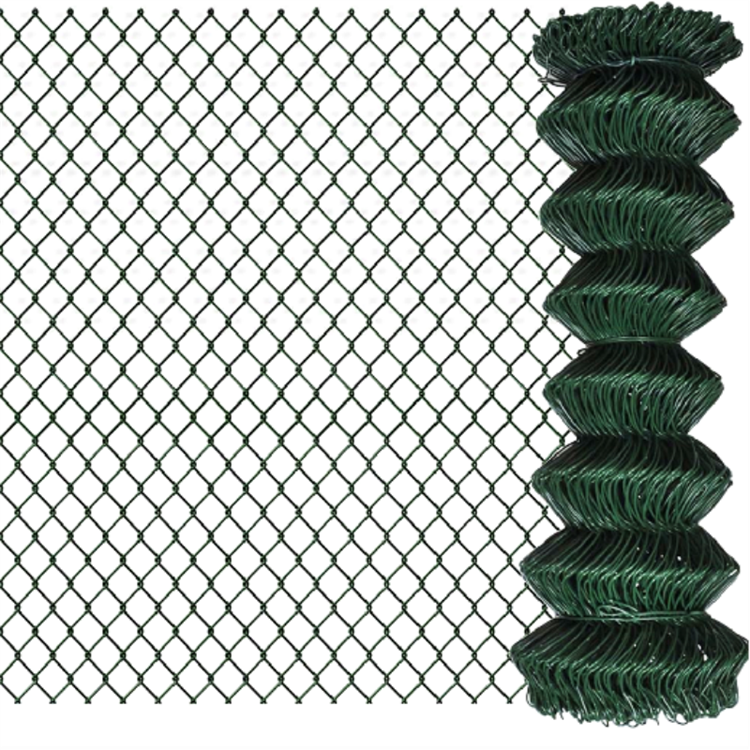

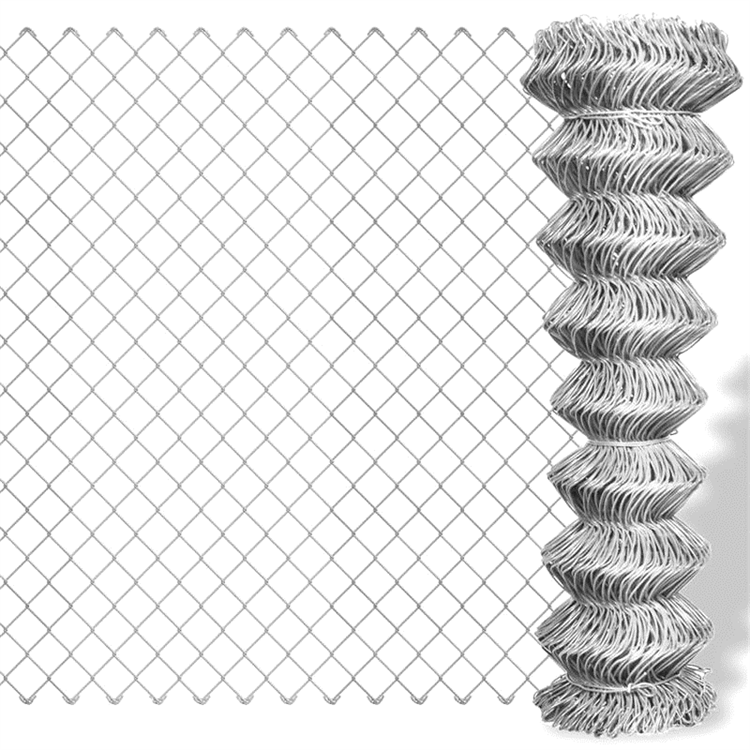

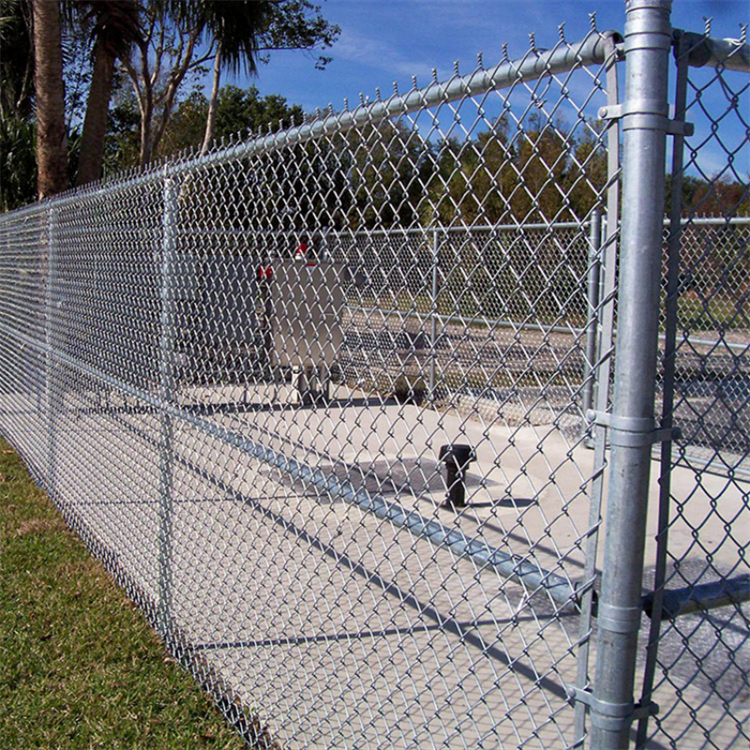

Chain link fence is made of high-quality low-carbon steel wire, PVC coated wire, and zinc-aluminum alloy wire.
|
Chain Link Roll specifications
|
|
Mesh Opening
|
Wire Thickness
|
Height
|
Length
|
|
inch
|
mm
|
bwg
|
mm
|
ft
|
m
|
|
3/4
|
20 X 20
|
18, 16,14
|
1.2-2.1
|
3ft
4ft
5ft
6ft
|
10m
15m
20m
25m
30m
|
|
1
|
25 X 25
|
18, 16, 14
|
1.2-2.1
|
|
1-1/4
|
30 X 30
|
18, 16, 14,12, 10
|
1.2-3.4
|
|
1-1/2
|
40 X 40
|
16, 14, 12, 10, 8
|
1.6-4
|
|
2
|
50 X 50
|
16, 14, 12, 10, 8
|
1.6-4
|
|
2-3/8
|
60 X 60
|
16, 14, 12, 10
|
1.6-3.4
|
|
3
|
75 X 75
|
14, 12, 10
|
2.1-3.4
|
|
4
|
100 X 100
|
14, 12, 10, 8
|
2.1-4.0
|
|
Surface Treatment: Electro galvanized, Hot-dipped galvanized, Galva.+ PVC coated.

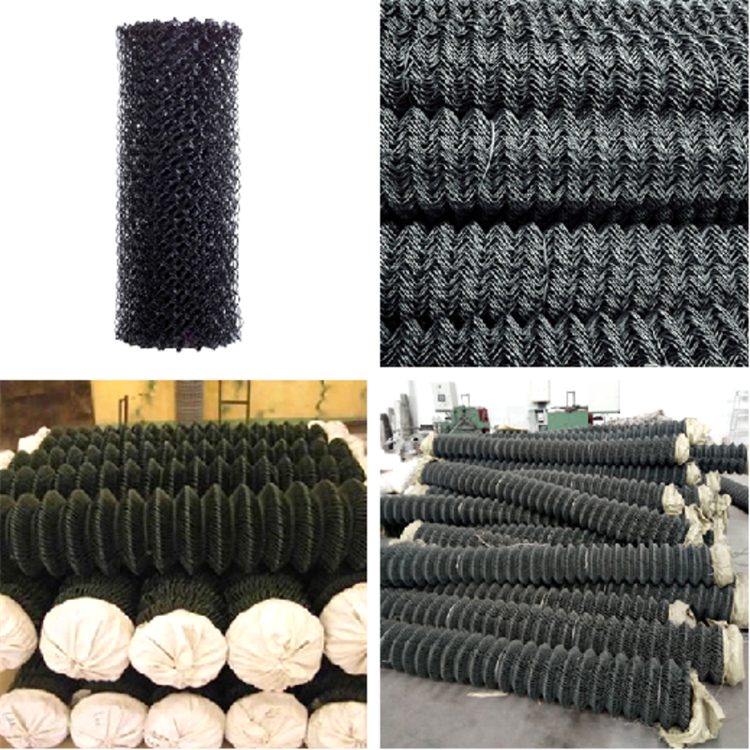

Surface Color: Silver, Green, Black, Colors
Edge Style: Twisted barb edge, Closed edge.
|

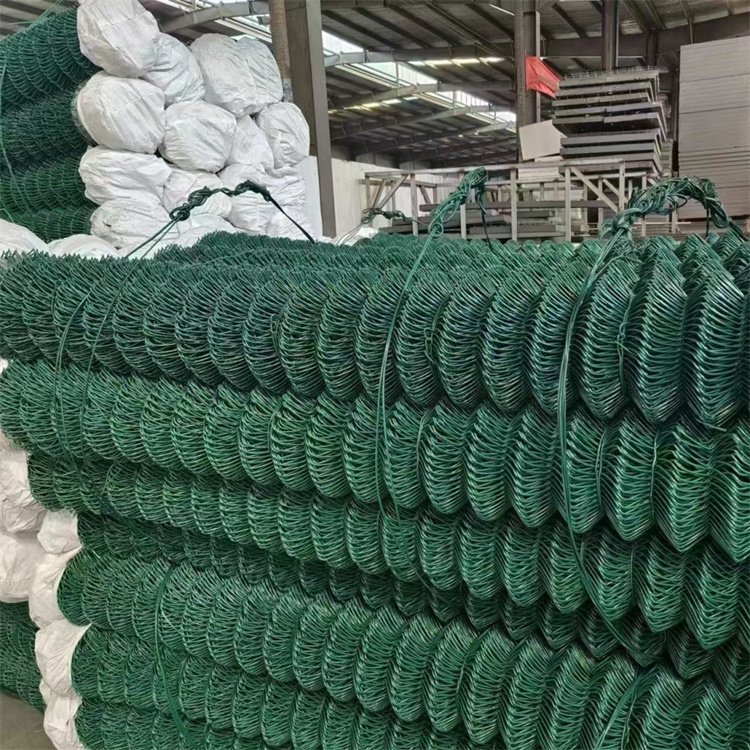

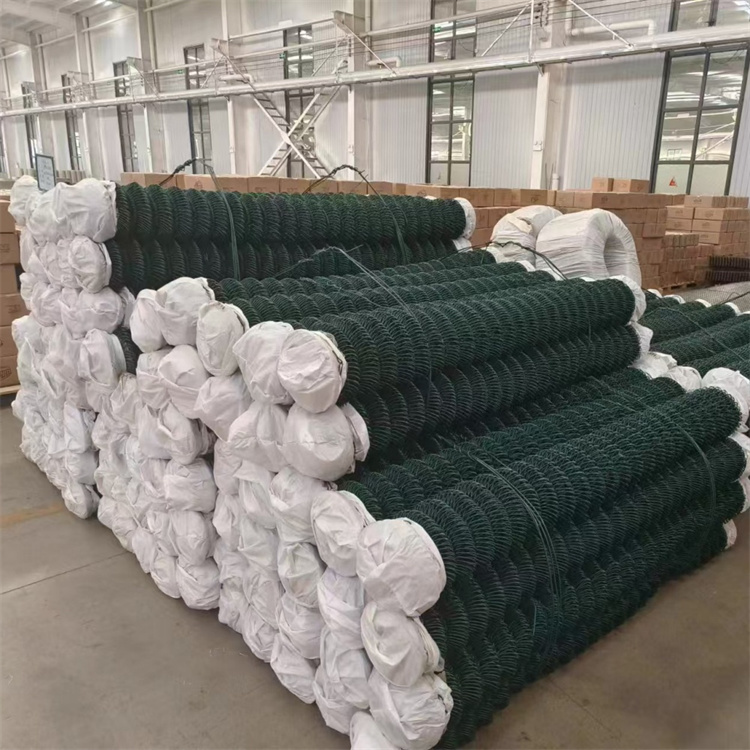

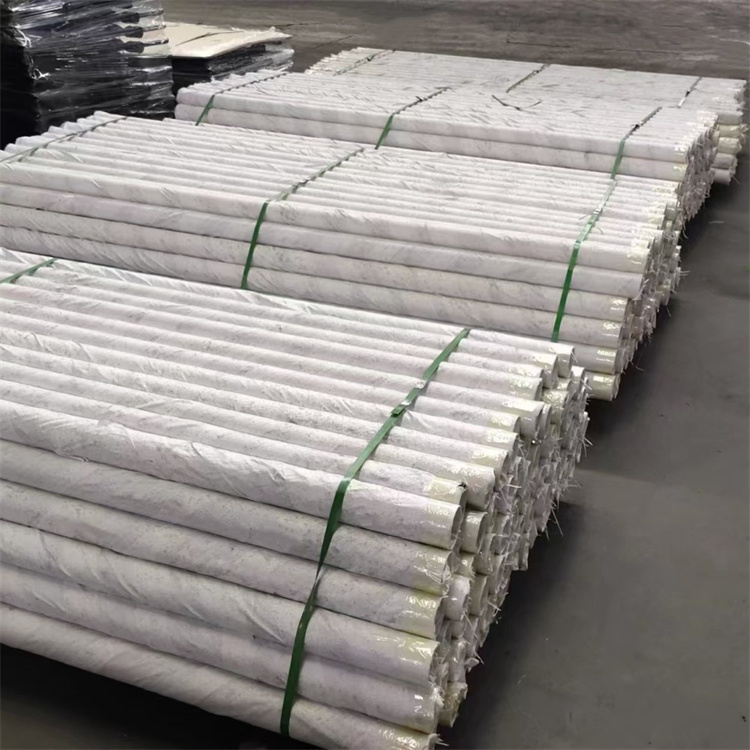

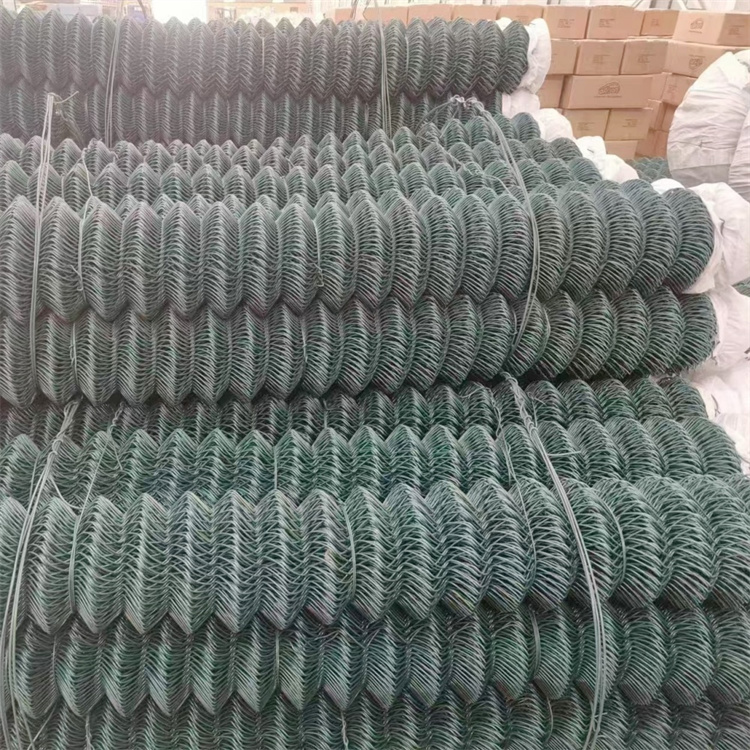

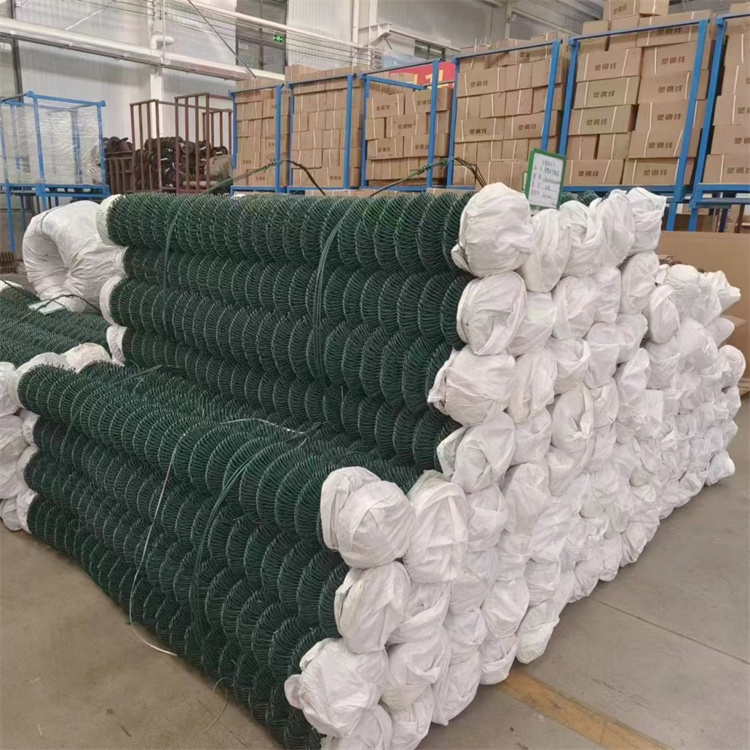

Packing way for chain link fence mesh:
Wrap up both edges with woven bag, or with Pallet, or as customer's request.
|
