Welded wire mesh

The welded wire mesh is made of high-quality Q195 low-carbon steel wire welded together, and then Electronic galvanized,Hot dipped galvanized, PVC coating. The mesh surface is smooth, the mesh is uniform, and the solder joints are Strong, local machining performance is good, stable, anti-corrosion mesh products. The product is made of high-quality galvanized iron wire and welded by precision automated machinery.

Material: High quality low carbon steel wire,stainless steel wire,galvanized wire

Type: galvanized after welding or galvanized before welding; hot dipped galvanized welded mesh, electronic galvanized welded mesh,PVC coated welded mesh.

Specifications of welded wire mesh
Mesh		Diameter		Approximate weight)
mm	Inch	mm	Inch	kg/m2	lb/100 ft2
6.4	1/4	0.55	0.0217	1.66	34
8.5	1/3	0.81	0.0317	0.65	13
10.6	3/7	0.90	0.0354	1.21	25
12.7	1/2	0.66	0.0258	1.86	38
12.7	1/2	0.81	0.0317	1.66	34
12.7	1/2	1.04	0.041	2.54	52
12.7	1/2	1.57	0.062	1.22	25
12.7 x 25.4	1/2 x 1	1.04	0.041	1.32	27
12.7 x 25.4	1/2 x 1	1.45	0.057	0.70	14
12.7 x 25.4	1/2 x 1	1.57	0.062	0.47	10
15.9	5/8	1.20	0.047	1.11	23
19.0	3/4	1.04	0.041	1.11	23
19.0	3/4	1.45	0.057	1.27	26
19.0	3/4	1.57	0.062	1.22	25
25.4 x 12.7	1×1/2	1.45	0.057	0.69	14
25.4 x 12.7	1×1/2	1.57	0.062	1.07	22

Mesh size		Wire Gauge (BWG)
mm	Inch
6.4	1/4″ x 1/4″	22, 23, 24
10.6	3/8″ x 3/8″	19, 20, 21, 22
12.7	1/2″ x 1/2″	16, 17, 18, 19, 20, 21, 22, 23
16	5/8″ x 5/8″	18, 19, 20, 21
19.1	3/4″ x 3/4″	16, 17, 18, 19, 20, 21
25.4x 12.7	1″ x 1/2″	16, 17, 18, 19, 20, 21
38	1-1/2″ x 1-1/2″	14, 15, 16, 17, 18, 19
25.4x 50.8	1″x2″	14, 15, 16
50.8	2″ x 2″	12, 13, 14

Other specifications can be customized according to customer needs.

Application:

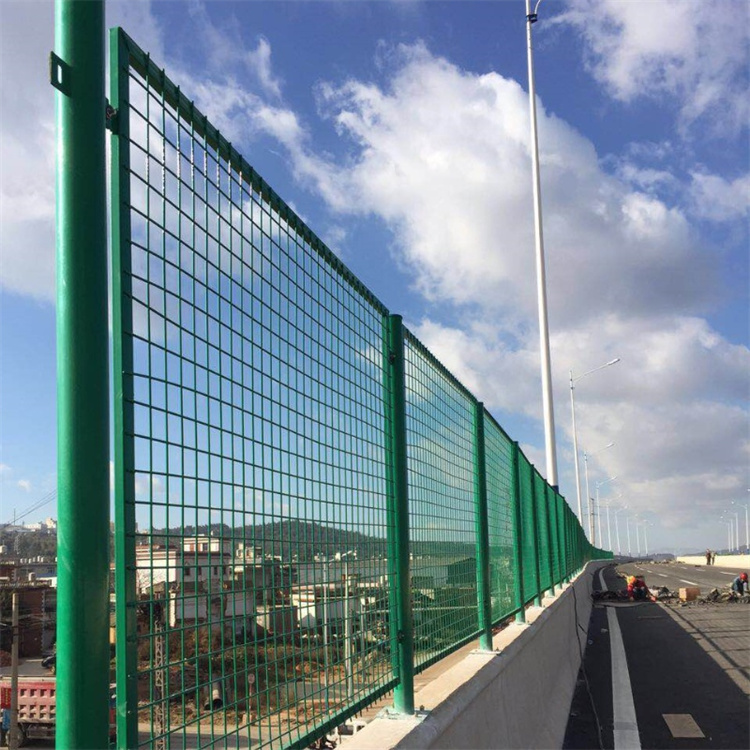

1. This product is widely used in industry, agriculture, breeding, construction, transportation, mining, etc. Such as machine protective covers, livestock fences, flower and tree fences, window fences, passage fences, poultry cages, home office food baskets, paper baskets and decoration.

2. Welded mesh has a simple structure, wide range of uses, is beautiful and practical, easy to transport, and its installation is not restricted by terrain fluctuations. It is especially adaptable to mountains, slopes, and multi-bend areas. The price is moderately low, and it is suitable for large-scale use.

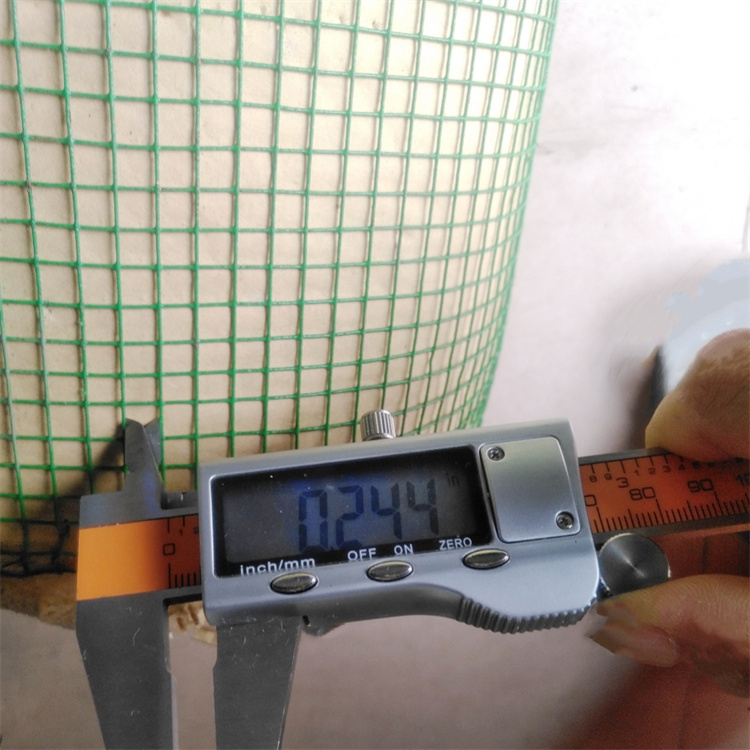

3. The welded mesh can be made into a mesh form. The surface treatment of the mesh can be by dip molding or spray molding. A protective film is formed on the surface of the welded mesh, which can effectively separate the metal wire from external water or other substances. The isolation of corrosive substances can effectively extend the use time. The spraying process can make the surface of the mesh show different colors and achieve a beautiful effect. The plastic-impregnated mesh is usually used outdoors and linked to columns to protect against theft.
