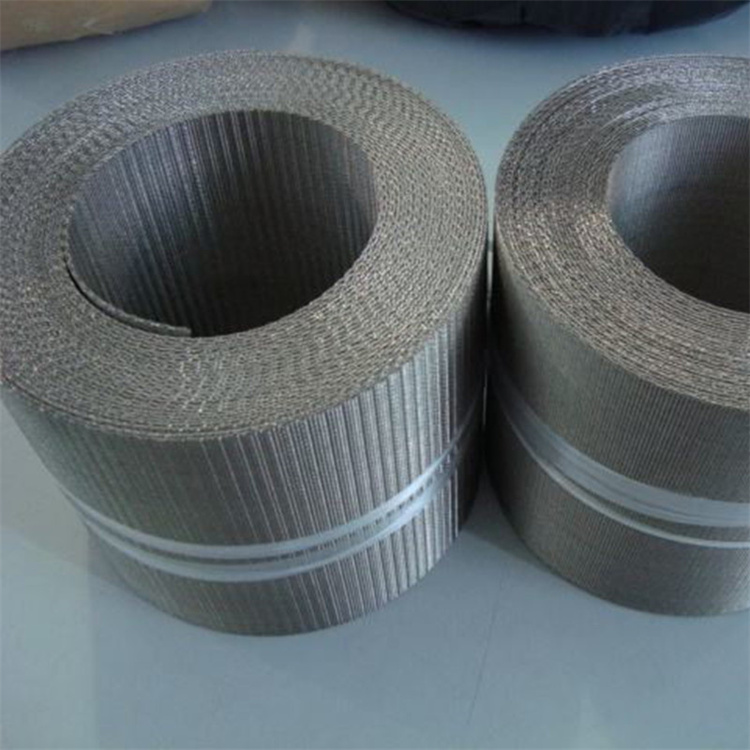

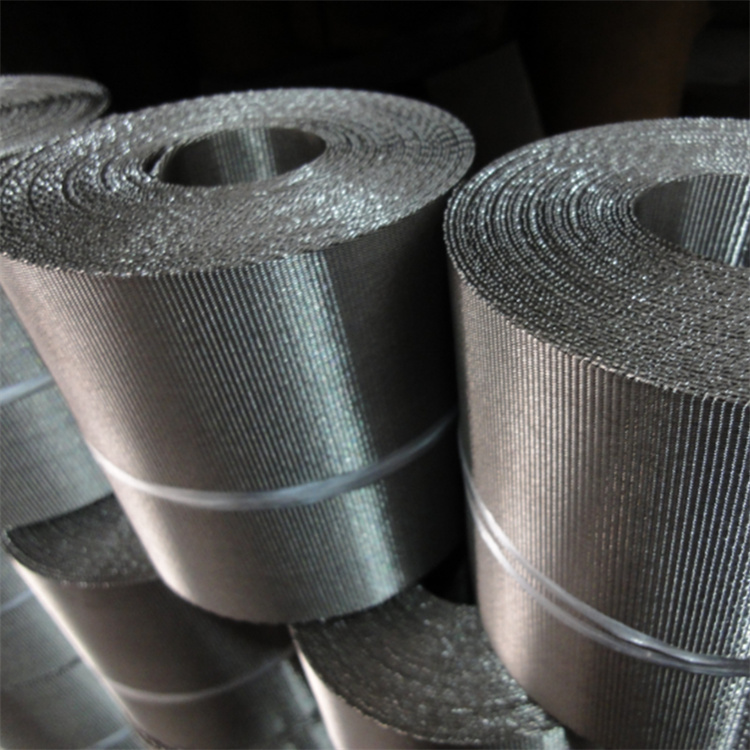

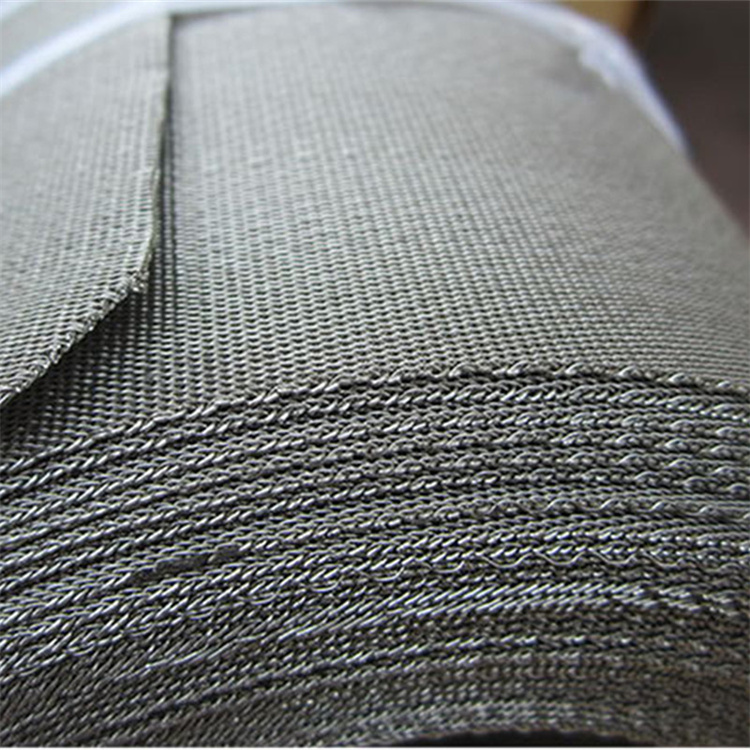

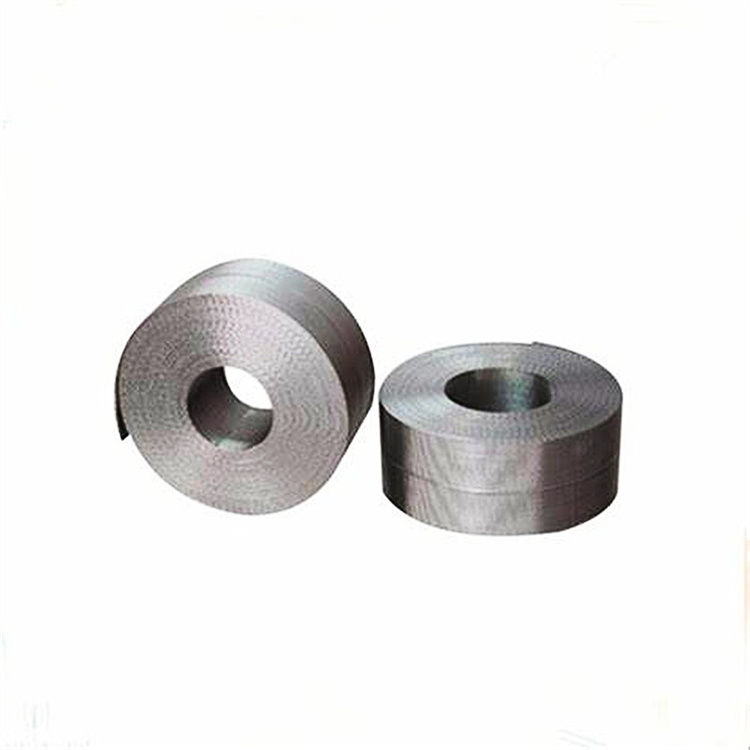

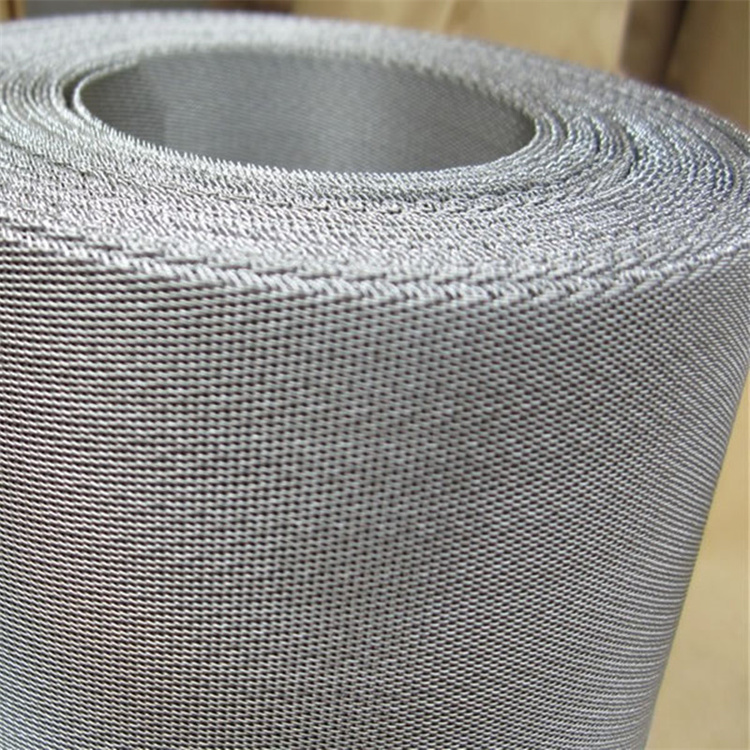

Reverse dutch weave wire cloth

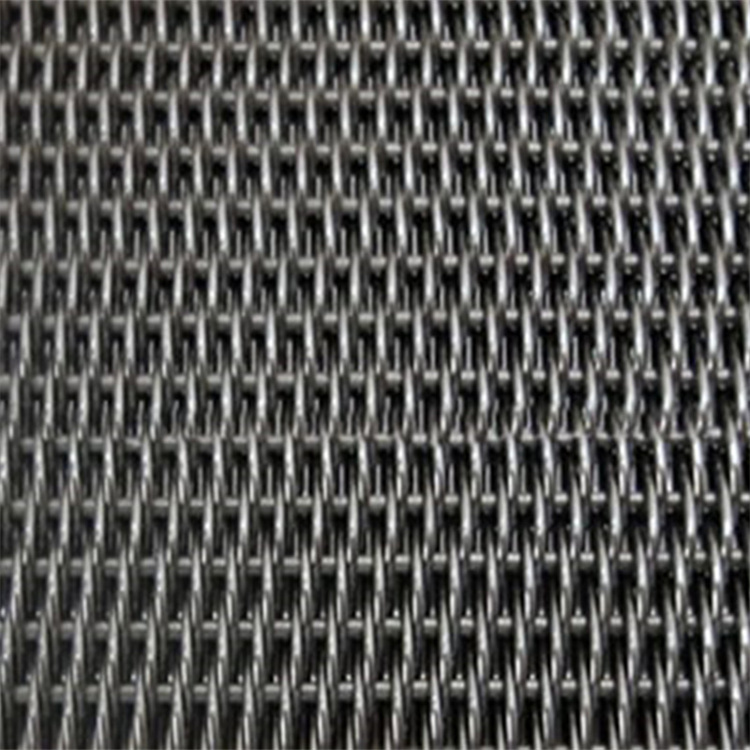

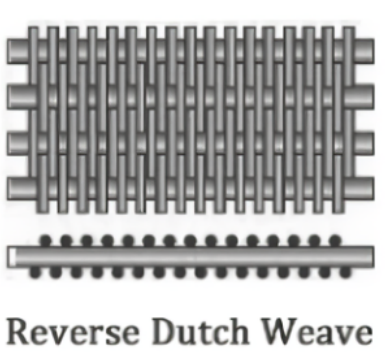

Reverse dutch weave wire cloth are with many wires in warp direction having a thin diameter and relatively few wires in weft direction having a large diameter. This construction makes wire meshes in a fineness of 14μm nominal opening to meshes of 200μm opening possible. It combine the properties of fine metal wire meshes with high mechanical stability which are key properties for the specialized requirements of solid-liquid filtration.It include Reverse plain dutch weaves/PZ and Reverse twilled dutch weave/KPZ.

Reverse dutch weave specification
Product code	Warp mesh	Weft mesh	Wire diameter inch		Aperature
Product code	Warp mesh	Weft mesh	Warp	Weft	μm
SPZ-48x10	48	10	0.0197	0.0197	400
SPZ-72x15	72	15	0.0177	0.0217	300
SPZ-132x17	132	17	0.0126	0.0177	200
SPZ-152x24	152	24	0.0106	0.0157	160
SPZ-152x30	152	30	0.0106	0.0118	130
SPZ-260x40	260	40	0.0059	0.0098	125
SPZ-280x70	280	70	0.0035	0.0083	45
SPZ-325x39	325	39	0.0051	0.0094	55
SPZ-600x125	600	125	0.0017	0.12/25.4	20
SPZ-720x150	720	150	0.0014	0.0042	15
