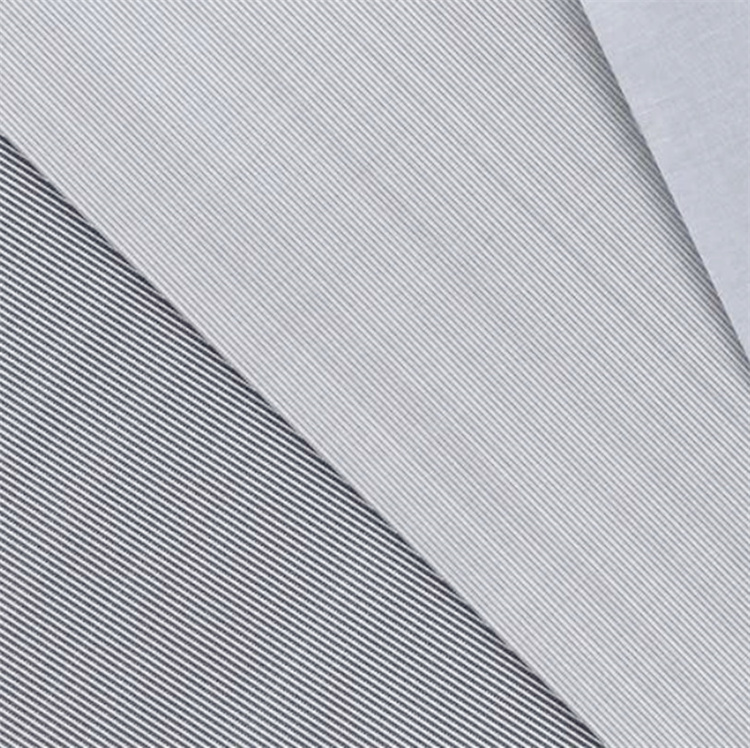

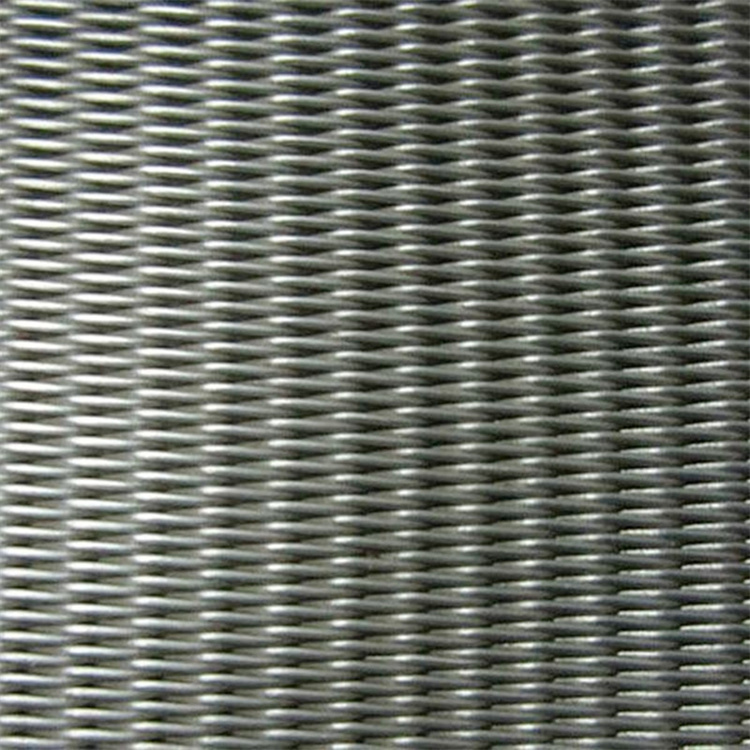

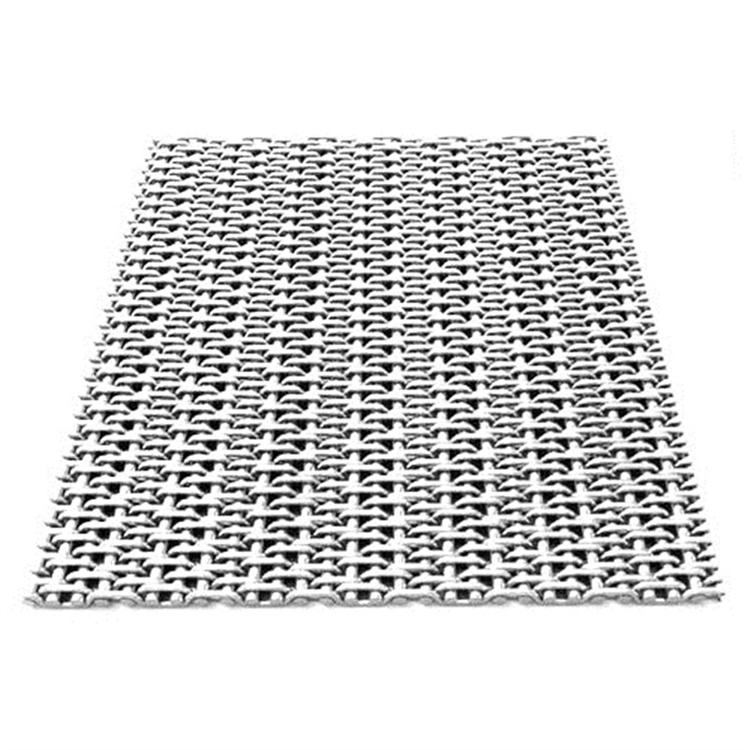

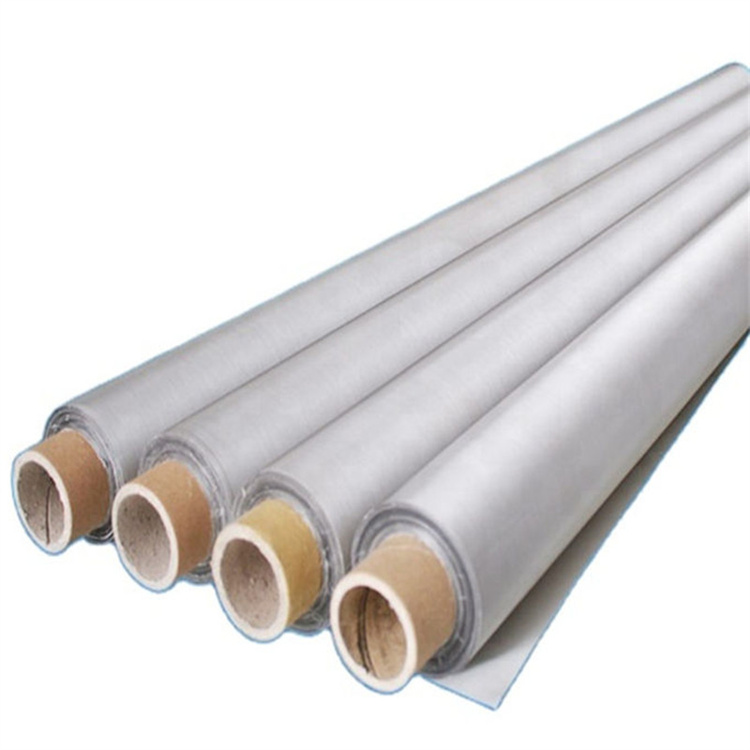

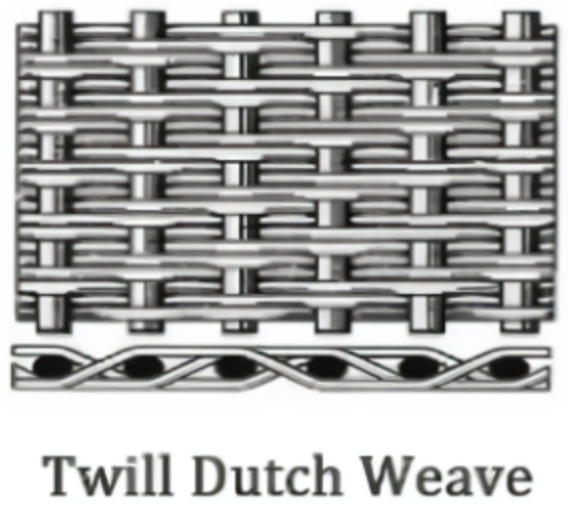

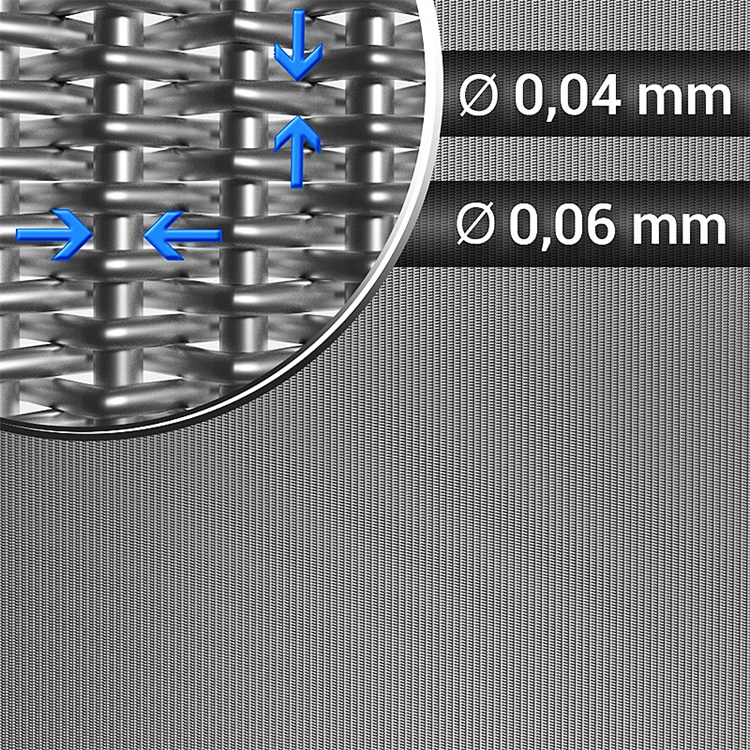

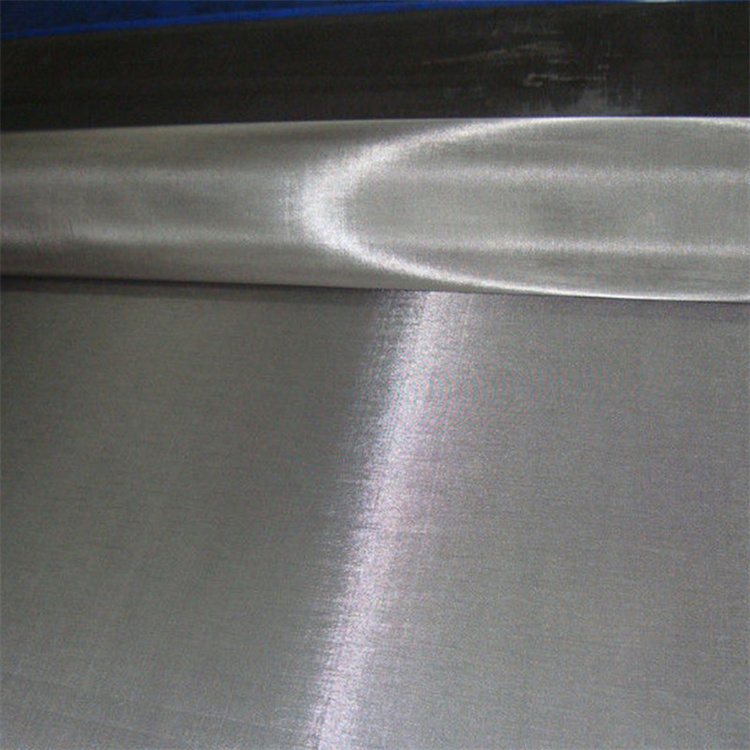

Twill dutch weave wire cloth are produced by interweaving of few, thick warp wires with thin weft wires in much higher number. Based on the twilled weave pattern, lightproof meshes are created. The spread ranges from wire meshes having 2 ¦Ìm nominal opening up to meshes having a 250 ¦Ìm opening.Due to their high material density, they are extremely robust in relation to their fineness and thus best suited for use involving highly intensive loads in the broadest range of filtration tasks and devices. Typical designs are, for example, nutsch-type filters, precoat filter systems of the widest variety of construction types and various systems with cartridge filters.
|
Twill dutch weave Specifications
|
|
Product code
|
Warp mesh
|
Weft mesh
|
Wire diameter inch
|
Aperature
|
Weight
|
|
Warp
|
Weft
|
¦Ìm
|
kg/m2
|
|
STDW-80x700
|
80
|
700
|
0.0040
|
0.0030
|
25
|
1.20
|
|
STDW-120x400
|
120
|
400
|
0.0039
|
0.0030
|
32
|
0.75
|
|
STDW-165x800
|
165
|
800
|
0.0028
|
0.0020
|
20
|
0.71
|
|
STDW-165x1400
|
165
|
1400
|
0.0028
|
0.0016
|
15
|
0.70
|
|
STDW-200x600
|
200
|
600
|
0.0024
|
0.0018
|
25
|
0.50
|
|
STDW-200x1400
|
200
|
1400
|
0.0028
|
0.0016
|
10
|
0.68
|
|
STDW-325x2300
|
325
|
2300
|
0.0015
|
0.0016
|
5
|
0.47
|
|
STDW-400x2800
|
400
|
2800
|
0.0014
|
0.0008
|
3
|
0.40
|
|
